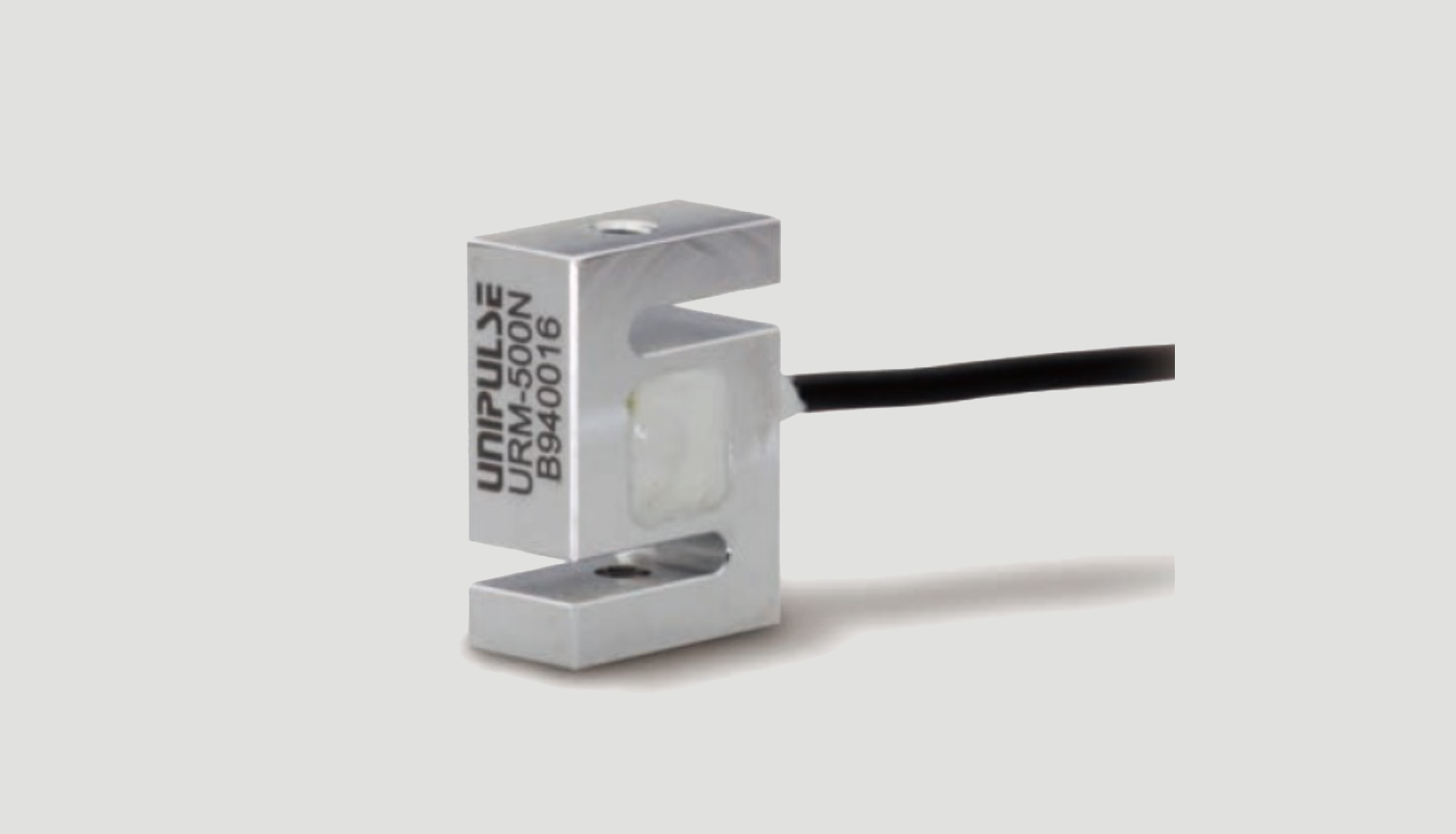

TENSION/COMPRESSION LOADCELL UNIPULSE URM

Small, accurate & wide lineup of S-type load cell

Model: URM-50N,URM-100N,URM-200N,URM-500N

Technical Information

Model URM-50N,URM-100N,URM-200N,URM-500N
Rated capacity 50,100,200,500 N
Rated output 1±20% mV/V
Safe overload 200 %R.C.
Zero balance ±10 %R.O.
Non-linearity 0.03 %R.O.
Hysteresis 0.03 %R.O.
Repeatability 0.03 %R.O.
Compensated temperature range -10 to +60 ℃
Safe temperature range -20 to +70 ℃
Temperature effect on zero 0.5 %R.O./10℃
Temperature effect on span 0.5 %R.O./10℃
Input resistance Approx. 350 Ω
Output resistance Approx. 350 Ω
Recommended excitation voltage 2.5 V
Maximum excitation voltage 5 V
Insulation resistance 1000 or more MΩ
Cable φ2mm 4-conductor flexible cable (1m)
Cable color code ＋EXC: Red＋SIG: Green－EXC: Black－SIG: WhiteSHIELD: Yellow
Loadcell material Aluminum alloy
