Threaded compression / tension loadcell ulct

THREADED COMPRESSION / TENSION LOADCELL ULCT

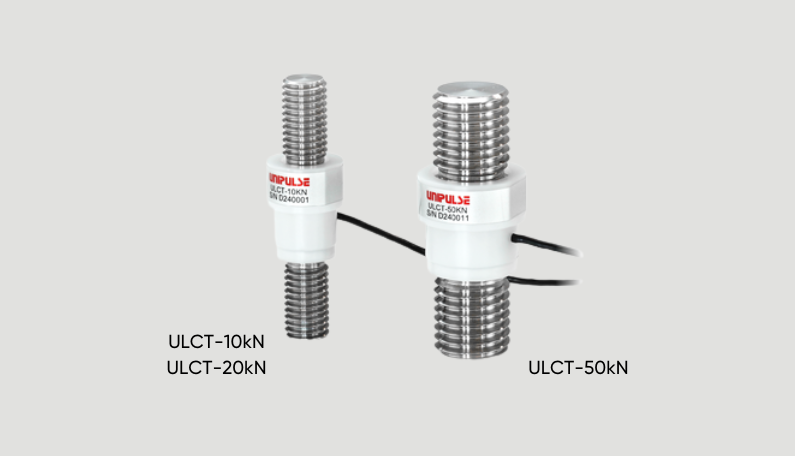

ULCT is a load cell with male screws on its top and bottom ends, for measure both tension and compression

Capacity 10 kN, 20 kN, 50 kN

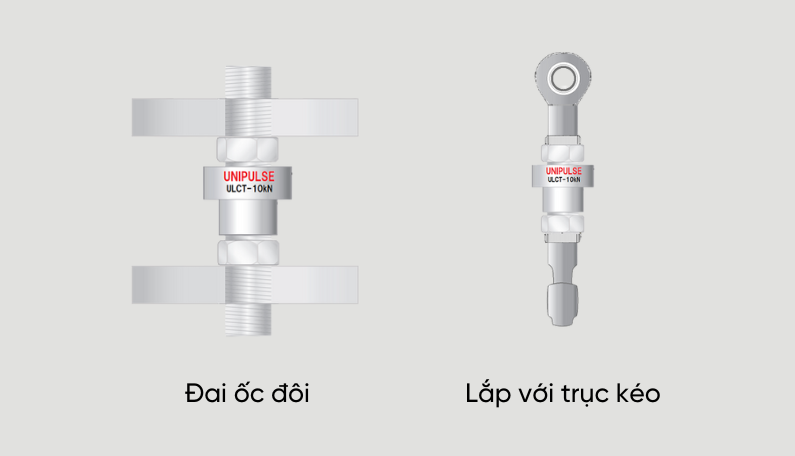

Easy-to-install with double nuts due to the male screws on both ends and attached low-profile nuts, which is less impact on accuracy against lateral load
Measure both tension & compression load

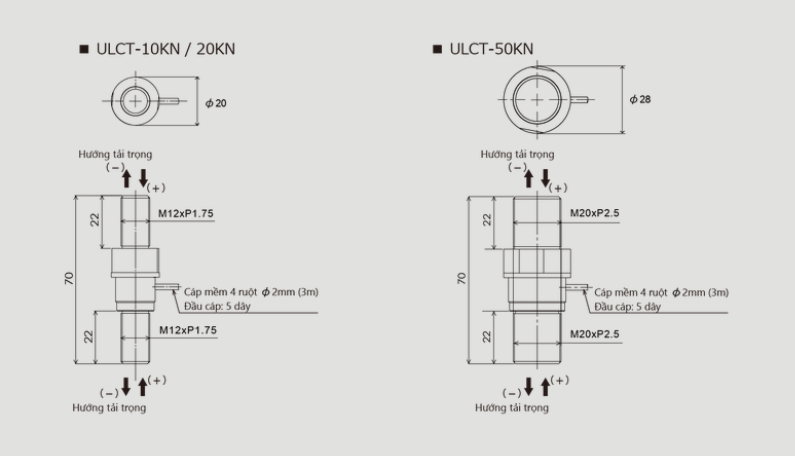

The height is short as 70 mm; this load cell does not block other equipment
1kN, 2kN and 100kN will be available in a line-up in the future.

Specifications
Model	ULCT-10kN	ULCT-20kN	ULCT-50kN
Rated capacity	10 kN	20 kN	50 kN
Rated output	Approx. 0.8 mV/V	Approx. 1.7 mV/V	Approx. 1.3 mV/V
Safe overload	200 % R.C.	150 % R.C.	200 % R.C.
Zero balance	± 10 % R.O.
Non-linearity	0.2 % R.O. or less
Hysteresis	0.2 % R.O. or less
Repeatability	0.1 % R.O. or less
Compensated temperature range	-10 ~ +60 °C
Safe temperature range	-20 ~ +70 °C
Temperature effect on zero	0.5 % R.O. / 10 °C or less
Temperature effect on span	0.5 % R.O. / 10 °C or less
Input resistance	Approx. 1000 Ω
Output resistance	Approx. 1000 Ω
Recommended excitation voltage	5 V
Maximum excitation voltage	7.5 V
Insultation resistance (DC50V)	1000MΩ or more
Cable	φ2 4-conductor flexible cable (3m) Cable end: 5 wires
Loadcell material	Special alloy steel
