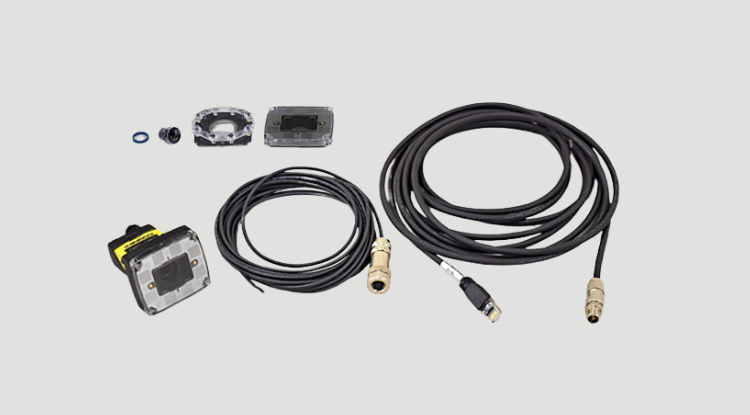

We incorporated a COGNEX AS200 into our dedicated robot software to create a specialized optional camera set with a lens, white LED ring light, LAN cable and power cable.
With this camera set, easily perform calibration, make position adjustment programs and refer to workpiece images when teaching.
We offer dedicated mounting brackets for adding the AS200 to your existing JANOME Screw Tightening Robot or Depaneling Robot.
Position Adjustment
Saves time by correcting work position displacement mid-operation. No need to stop and mechanically reset each work position.
Camera teaching
Refer to enlarged camera images and make precise position settings.
Easy program teaching, just choose the icons for the jobs you want. No specialized knowledge needed, even new users can easily create programs.
Auto Calibration
Just shoot a standard mark and calibrate the camera automatically.
Shoot & adjust sequentially
Follow a series of shots with a series of adjustments for a shorter cycle time.
Make up to 3000 position adjustments per cycle.
No additional software
Our existing PC software, “JR C-Point II” is all you need for smooth setup and easy camera operation, from program settings to position adjustments. (Compatible software version is 8.7 or later. If your version is earlier than 8.7, please contact us.)
Mount the camera on your Janome robot. Compatible with dispensing, screw tightening and depaneling applications... optional specialized mounting brackets available for easy installation.
TECHNICAL SPECIFICATIONS
| Model | AS200 (specialized model exclusively for Janome) |
| Compatible Robot Models | JR3000 Series, JC-3 Series, JD3 Series |
| Job/Program Memory | 32MB |
| Image Processing Memory | 128MB |
| Resolution | 1280 x 960 |
| Image Acquisition Speed (fps) | Monochrome: 40 |
| Working Distance | Approx. 100mm |
| Field of View | Approx. 26mm x 20mm |
| Lighting | Integrated (IFS-2000-HBRING-WH) Status during shooting: strobe |
| Sensor Type | 1/3 inch CMOS, Global shutter |
| Lens Type | S-Mount/M12 Lenses |
| Lens | LM12-16-01 (16mm F2.5) |
| Lens Spacers | LM12-SPACER-16-01 (for 16mm lens) |
| Cover | IMPF-2000-POLA2 |
| Power Supply | DC24V, 48W (2.0A) |
| Operating Env. Temperature | 0℃ - 40 ℃ |
| Size | 92mm x 60mm x 52mm |
| Weight | 200g |
| Ingress Protection Rating |
IP65 (The robot unit ingress protection rating is IP20) |
| Common Options | Switching Hub, Camera Power Supply, Hexalobular Wrench 10 (for changing the camera angle) |
